Sample MIS101 Information Systems for Business

MIS101 Information Systems for Business Assignment Sample

Assignment Brief
Length 1500 words (+/- 10%)
Learning Outcomes

The Subject Learning Outcomes demonstrated by successful completion of the task below include for assignment help

a) Identify and explain components of information system for business.

b) Demonstrate an understanding of computing related mathematics.

Submission Due - by 11:55pm AEST/AEDT Sunday end of Module 4.2 (Week 8)
Weighting - 40%
Total Marks - 100

Task Summary

Using your understanding of computer number system and logic, answer the questions provided.
Context
Computer systems only understand binary numbers. The CPU, the main component inside a computer system, makes logical decision based on binary numbers. In Modules 3 and 4, you learned about computing mathematics and logic. This assessment focuses on your understanding of the number system and logic in computers.

Task Instructions

Read the questions carefully and give clear and precise answers.

Question 1:

a) Choose a sentence of no more than 25 characters containing your name (Example: ‘Kyle is in high school.’ Identify the ASCII code for each character; identify its decimal representation and then convert it into its equivalent binary number. (10 marks).

b) Convert the binary sequence (identified in part ‘a’) back to characters (5 marks).

c) Show the hexadecimal representation of each character in the selected sentence (5 marks).

Question 2:

Select an everyday real-life problem that requires two inputs. Once selected, represent it using a truth table. Explain the possible outcomes. Represent your problem using a logic diagram (20 marks).

Question 3:

Use the internet to investigate and explain what data transfer rate or speed is (10 marks).

Question 4:

How is the concept of Set Theory applied to Relational Databases? Give two examples (10 marks).

Question 5:

Identify and explain at least two applications of hexadecimal numbers in modern computing (10 marks).

Question 6:

Consider the following scenario:

The three inputs which affect the outcome of a business are:

1. the management is good
2. employees are satisfied
3. people are hard-working

If the management is not good, the organization will be in loss. If management is good and employees are satisfied but they do not work hard, then the organization will be in loss. If the management is good but the employees are not satisfied, then the business will break-even. If all three conditions are satisfied, then the organization will be in profit.
Analyze the scenario and identify the inputs and outputs to a process which decides the success of a business. Show this in the form of a truth table and logic diagram (30 marks).

Referencing

It is essential that you use appropriate APA style for citing and referencing research. Please see more information on referencing here: http://library.laureate.net.au/research_skills/referencing

Submission Instructions
Please submit ONE Word document (.doc or .docx) via the Assessment 2 section found in the main navigation menu of the MIS101 Blackboard site.

Solution

Introduction

In the world of computing, mathematics is an important subject as this is helpful for the students to use abstract language, deal with algorithms, self-analysis of computational thinking, and accurate modeling of real-world solutions. Thus, the unit here introduces the mathematical paradigm in the context of computing. Here, the researcher shows different calculations.

Question 1

a) Sentence: Kyle is in high school

ASCII code for Each character: 075121108101 105115 105110 104105103104 115099104111111108

Decimal Representation: 75 121 108 101 32 105 115 32 105 110 32 104 105 103 104 32 115 99 104 111 111 108

Conversion to equivalent binary number: 01001011 01111001 01101100 01100101 00100000 01101001 01110011 00100000 01101001 01101110 00100000 01101000 01101001 01100111 01101000 00100000 01110011 01100011 01101000 01101111 01101111 01101100

b) Binary to character: Kyle is in high school

c) Hexadecimal representation: 4b796c6520697320696e2068696768207363686f6f6c

Question 2

Real-life problem

Premise: If an individual bought bread, then he/she went to the store
Premise: The individual bought bread
Conclusion: He/she went to the store

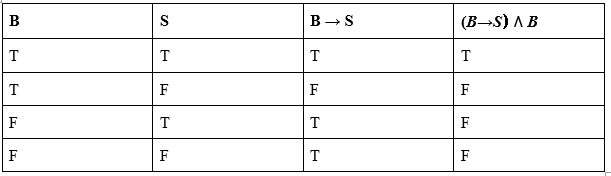

So, for this, the truth table will be represented as:

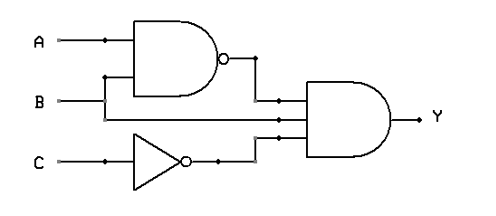

For the given problem, the logic problem will be represented as:

Question 3

A data transfer often talks about the movement of digital data from one place to another, from a hard drive to a USB flash drive at a specific point in time. It is commonly used for measuring how fast data is going to be transferred from one location to another. For example, ISP often provides an Internet Connection with a maximum rate of data transfer of only 1.5 Mbps. It is measured in terms of either bit per second or bytes per second. A bit is used for measuring speed, while Byte is used for measuring size (Comer, 2018).

The rate of data transfer can be tested using various online tools. Most of them are known as internet speed tests. These tools are mostly used in order to get the broadband speed promised by the Internet providers. Various speeds are measured, such as speed of downloading, uploading, and also latency. Download speed talks about the time taken to transfer a file from the Internet to the user’s home network or computer. Uploading speed is referring to as time is taken for uploading a file to the internet. At the same time, latency, also known as ping, depicts the delay in the transfer of data from a server to the user's computer.

A slow rate of data transfer is the result of the computer’s hard drive, so this can be fortunately increased. Some of the ways to enhance it are:

? Changing the file system used for formatting the drive from FAT32 to NTFS.

? Tweaking the settings of the system to perform better

? Turning off the compression of the disk

? Another method is the upgradation of USB 2.0 to USB 3.0 or new versions.

In the case of a hard drive, the data transfer rate is of two types: External rate of transfer and internal transfer rate. External is also known as curst data transfer rate or interface rate that means the speed at which the data is moving between the internal buffer and system memory. On the other hand, the internal transfer rate is also referred to as the maximum or minimum sustained rate of transfer (Bhati & Venkataram, 2017). This means the speed of data is often read and written to the hard disk. The external rate of transfer is faster than the internal just because it is purely electronic and hence not relying on the efficiency of actual physical elements.

Question 4

A set is the collection of objects. Objects in this assortment are additionally supposed to be the set components or individuals. The most important point of this is members must define it clearly and exactly. An explicit definition of the member is not able to identify the set. For example, months of the colder time of year season is indicating a set, yet a few months are not determining a set. Consequently, sets are frequently named with the assistance of capital letters (Rodionov & Zakharov, 2018). Set names are given in curly braces and separated with the help of commas. Such a representation is known as Roster or Tabular form. X= {December, January, February}

It can also be represented using a Venn Diagram.

According to the set theory, the union of two sets can be helpful to get a new set containing members of the union sets. The below example can represent this:

A= {Orange, Apple, Lemon, Avocado, Strawberry}
B= {Lemon, Avocado, Apricot, Grape}

The union will be hence depicted by A U B.

A U B= {Apple, Lemon, Avocado, Orange, Strawberry, Grapefruit, Apricot}

The Venn diagram will be hence:

In SQL Server, the UNION operator is concatenating the result sets obtained from two tables and hence eliminating the duplicated rows from the outcome. In fact, here, this is acting just like a union operator in the Set Theory. If, B and A sets are defined using SQL server’s tables then, in this context, first, create the table and then add the expressions similar to A and B.

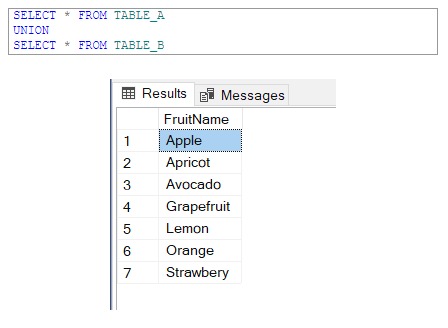

The union of these tables will result in:

Change in the order of tables in the query will not result in any alteration.

On the other hand, the intersection of two sets is generating a set containing the common members of the intersected sets.

A∩ B = {Lemon, Avocado}

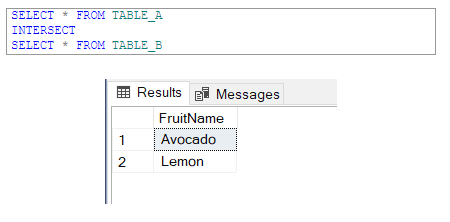

In SQL Server, the INTERSECT operator is implementing the logic of intersection in the Set Theory to tables. So, the intersection of both tables A and B can be given as:

Question 5

Hexadecimal or hex with base 16 system is mainly used for simplifying the representation of binary. This hence means that an 8-bit binary number can be written with the help of two different hex digits, one for each nibble or group of 4-bits. Hexadecimal is utilized in the following manner:

? Defining the memory location: Hex has the potential to characterize every byte as two hex digits can only be compared to eight digits at the time of using binary.

? Defining colours on the web pages: Each primary colour, such as green, blue and red, is attributed by two hex digits (Massengale, 2019). The format that is used is #RRGGBB.

? Displaying an error message: Hex is used for defining the error location in the memory. This one is hence used by the programmers to find and fix the errors.

? Representing MAC addresses: There are 12-digit hex numbers in a MAC address. The format used is either in the form MM: MM: MM: SS: SS: SS or MMMM-MMSS-SSSS. The first 6-digits of the MAC address is hence showing the adapter manufacturer's ID, while the last 6-digits represent the adapter's serial number.

Question 6

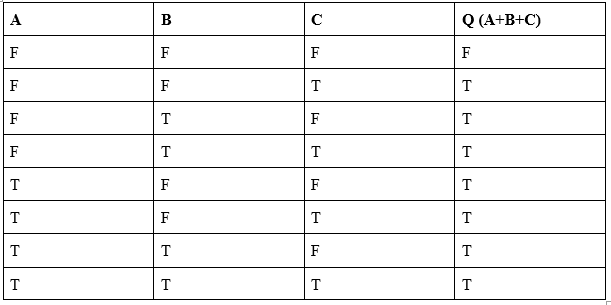

For the given scenario, it can be observed that here three inputs are present they are: employees are satisfied, management is good, and people are working hard. From the scenario, it can be said that if the management is good and employees are highly satisfied with the work environment, then automatically, the companies can foster their business. However, if the management is good, but employees are less or not satisfied, then the organization will suffer a huge loss. If all the conditions are satisfied, then, obviously, the organization will be in profit. So, the overall scenario can be presented in the truth table. Once the truth table has been created, the logic diagram can also be created easily.

So, the logic gate for this truth table would be:

In this context, the "OR" operator has been applied. It is observed that if all the inputs are false, then the output will also be false. Similarly, when two false conditions are combined with one true value, then the result will be true itself. That means that if the management is not working well and employees are not satisfied but still working with great dedication, then also the organization is gaining a huge revenue because of high productivity level. Similarly, if all three inputs are false, then the firm automatically fails to provide the best service, and there will be a huge loss in revenue.

Conclusion

Comprehensively, it can be said that binary and ASCII codes are mostly used for transmitting data. These are codes to transmit data often used by smaller and less-powerful computers for representing both textual data and also non-input device commands. So, the unit discussed these concepts profoundly. The unit also consisted of some descriptive parts related to the computing world. The study also depicted the use of a truth table and logic gates for inferring a premise. This also discussed the relationship between set theory and relational databases. In this direction, the researcher used UNION and INTERSECTION operation.

References

Bhati, B. S., & Venkataram, P. (2017). Preserving data privacy during data transfer in manets. Wireless Personal Communications : An International Journal, 97(3), 4063–4086. Retrieved from: https://doi.org/10.1007/s11277-017-4713-2

Comer, D. (2018). The internet book : everything you need to know about computer networking and how the internet works (5th ed.). Chapman & Hall/CRC Retrieved from: https://lesa.on.worldcat.org/oclc/1052459938

Massengale, L. (2019). Digital systems design: numbering systems and logical operations. Momentum Press. Retrieved from: https://lesa.on.worldcat.org/oclc/1083457871

Rodionov, T. V., & Zakharov, V. K. (2018). Fundamentals of set and number theory (Ser. De gruyter studies in mathematics ser, v. 68/1). De Gruyter Retrieved from: https://lesa.on.worldcat.org/oclc/1023551253
